10ml - 2000ml Carbonated Water Bottle Making Machine For Beverage Plant

Quick Detail:

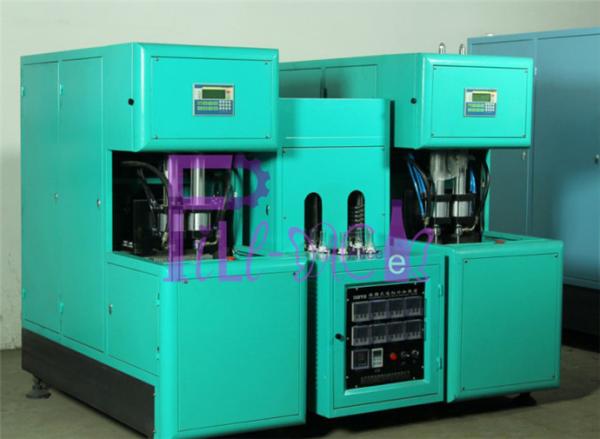

1, Machine structure: 2 sets of bottle blowers & 1 set of preform heater

2, Automation: Semi - automatic

3, Bottle output: 800 - 1000 BPH

4, Bottle material: PET / PP / PE bottles

5, Bottle type: juice bottle, carbonated water bottle, water bottle

5, Auxiliary machine needed: YES

Description:

DY-1200B is semi automatic mode bottle blowing machine which is suitable for producing plastic containers from 10-2000ml in PET, PE and PP. For PP and PE material, the preform heater will be a little bit different.

It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide mouth bottle etc.

For the bottle shape, we can help to sculpt the bottles according to customer's requirements before making the bottle moulds.

Specifications:

Applications and features:

1, The bottle blowing machine can be widely applied in food, drink, dairy, cosmetic, medical, chemical industrial and etc;

2, The bottle blowing machine is used to develop different bottles for explore more market;

3, All the movements of bottle blowing machine are driven by the air cylinder, no need the hydraulic oil and even no pollution.

4, Auxiliary machines are needed during blowing including HP (High pressure) air compressor, air filters.

5, Suitable for new developer for testing the market.

Connection diagram & electric parts

Competitive Advantage:

> Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
> The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
> The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
> The machine can be operated in the step-by-step mode and the semi-auto mode.
> The machine is small with low investment, easy and safe to operate .

please kindly click the play button to watch the video

ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. which was originally set up as an factory in 1999,the company is growing up time by time in research and design, quality and production, sales and after sale service. Our machineries are sold to more than 50 countries in the world and over cross domestic.

We specialize in producing beverage filling-packing equipments and water treatment equipments. The quality already pass drinkable standard.At present we produce: production lines for mineral water, pure water, fruit juice,tea drink,milk drink and carbonated drink with capacity  1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 60-1200 barrels per hour and water treatment plants 1-30 ton/hour; We provide separate machinery or turnkey project.

Our products pass quality inspection executed by Bureau of Quality and Technical Supervision every year. We pass Italy CE inspection in 2011;

We have full-time development and design engineer team, we absorb technologies from Germany, Japan, France, Italy, Switzerland, combined with China's national conditions to develop high starting point and advanced technology filling equipments, degree of automation to achieve the advanced level.

We own 3700 square meters modern factory in accordance with ISO9001: 2000 certification system standards with all kinds of advanced processing equipment and testing equipment, experienced technicians, scientific and strict management, all constitute FILLPACK excellence in product manufacturing system, which provides the strongest protection for FILLPACK product quality.

We believe in FILLPACK’ s future while you choose us!
