2000BPH Banlanced Pressure Soft Drink Processing Line - PET Bottle With Screw Cap

Quick Detail:

1. Capacity: 2000BPH

2. PET bottle - screw cap, 200-2000ml

3. Material: SUS304

4. Speed adjustable

5. Rotary 12 heads washing, 12 heads filling, 1 head capping, with linear conveyor connection

Description:

This soft drink processing line is mainly used to process the carbonated drink, soft drink, soda water, beer for latter filling in bottles, here the treatment capacity is 1000L/H.

All the main material is SUS304 material, which meets with the food grade.

It's set after water purification, before bottle filling machine, main contains the follow machines:

1) Solid sugar melting tank:

To melt the sugar for liquid syrup for latter use, 200kg/time

2) Syrup filter: (you can choose or not as your sugar liquid purifity)

To filter the liquid syrup to be more fine for latter beverage mixing use, 320kg/time

3) Mixing tank:

To use to mixing syrup, liquid, and other material for use, 1000L volume

4) Double filter:

To filter the liquid mixing material to be fine for latter use, 1T/H

5) Water / drink cooling tank:

To use to cool the mixing liquid to be with more lower temperature for better CO2 mixing in the beverage in next CO2 mixing machine.

6) CO2 mixing machine:

To use to mix the CO2 into liquid beverage for final carbonated drink for filling, capacity 1000L/H.

7) Bottle washing machine, bottle filling machine, bottle capping machine, conveyor and motor

For more specific details, please feel free to let me know.

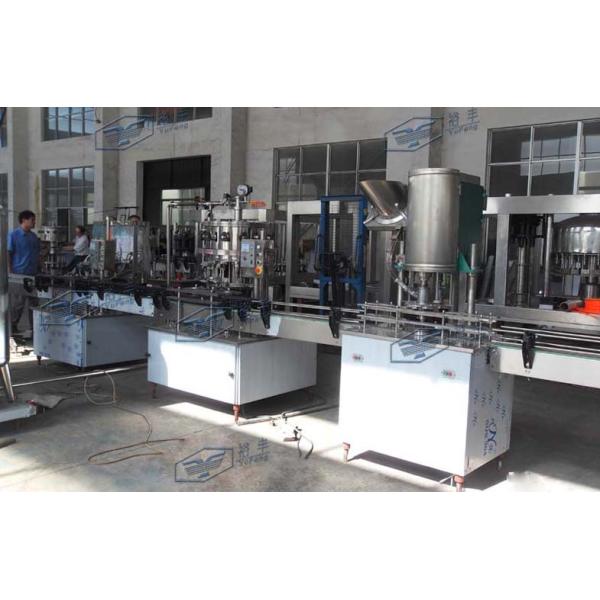

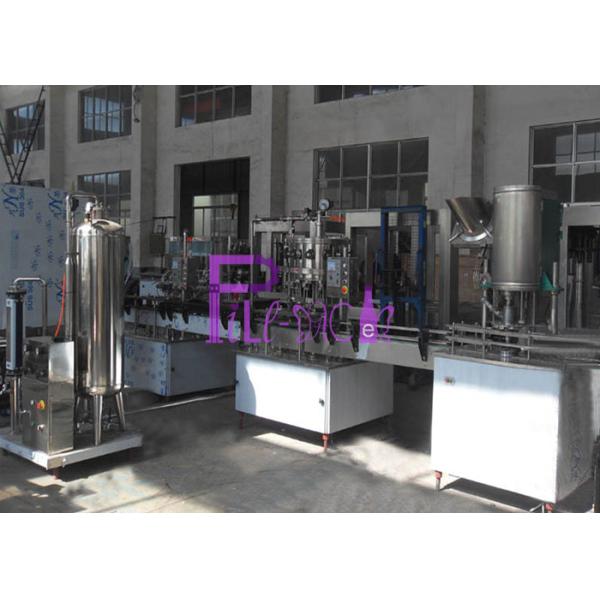

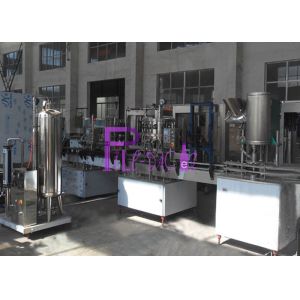

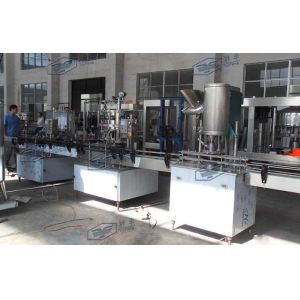

Products photo:

Our workshop

Packaging & Shipping

ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. which was originally set up as an factory in 1999,the company is growing up time by time in research and design, quality and production, sales and after sale service. Our machineries are sold to more than 50 countries in the world and over cross domestic.

We specialize in producing beverage filling-packing equipments and water treatment equipments. The quality already pass drinkable standard.At present we produce: production lines for mineral water, pure water, fruit juice,tea drink,milk drink and carbonated drink with capacity  1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 60-1200 barrels per hour and water treatment plants 1-30 ton/hour; We provide separate machinery or turnkey project.

Our products pass quality inspection executed by Bureau of Quality and Technical Supervision every year. We pass Italy CE inspection in 2011;

We have full-time development and design engineer team, we absorb technologies from Germany, Japan, France, Italy, Switzerland, combined with China's national conditions to develop high starting point and advanced technology filling equipments, degree of automation to achieve the advanced level.

We own 3700 square meters modern factory in accordance with ISO9001: 2000 certification system standards with all kinds of advanced processing equipment and testing equipment, experienced technicians, scientific and strict management, all constitute FILLPACK excellence in product manufacturing system, which provides the strongest protection for FILLPACK product quality.

We believe in FILLPACK’ s future while you choose us!
