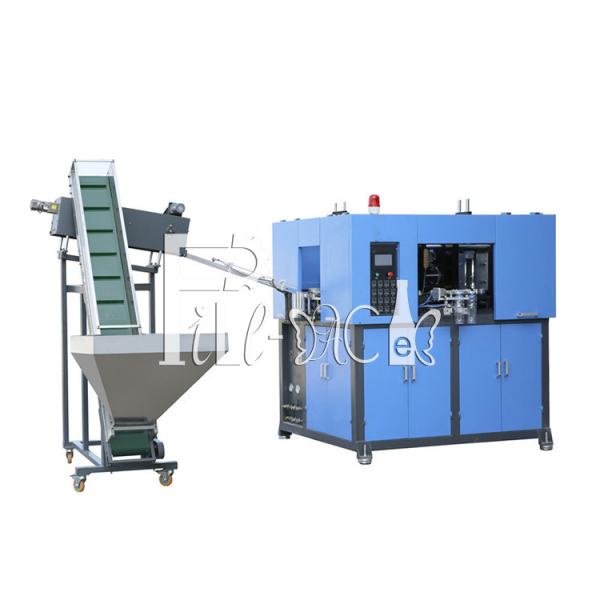

2400BPH Full Automatic 2 Cavity 500ml-2L PET / Plastic Bottle Blow Molding Machine Plant For Pure Water Filling Line

FP-2000 series are the most stable two-step automatic blowing machines. It has 2 cavity, the mould can be customized as clients need, 500ml, 1200ml, 1500ml, 1800ml, 2000ml. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type. We can make the moulds as clients' various needs. We can do the test report of water quality, design various shape of bottles, we can do the bottle blowing test first before making the final decision.

Settings
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.

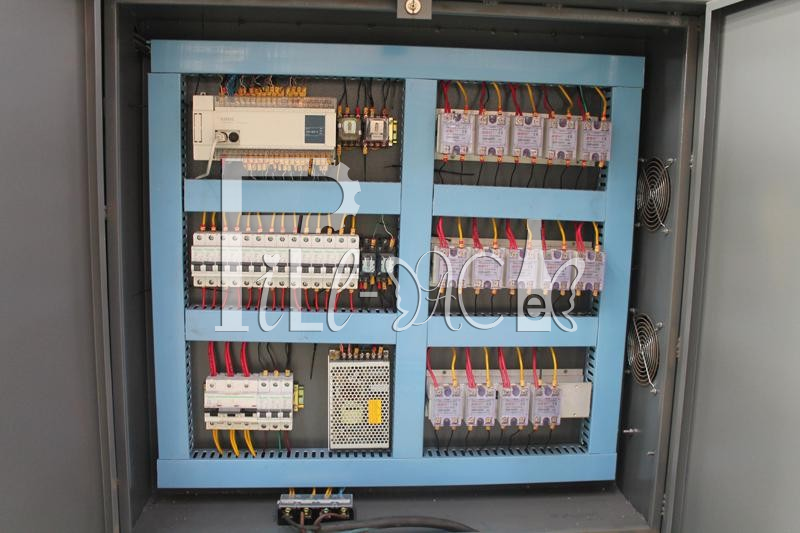

4. PLC control system, the operaton is easy controled .
5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.

6. The height of the UV light tubes in preform heater is adjustable. Also, there is setting to keep the temperature in the heater, exhaust extra heat.
7. Every movement, every components have safety treatment, any progress happens accident, the machine will be in safety mode.
8. Safe, dependable, special design of valves, easy to do maintainance.

Features
1. Conveying preforms automatically with conveyor.
2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
3. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
4. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
5. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
6. Strong clamping force with high pressure and double crank links to lock the mold.
7. Two ways of operating: Automatic and manual.
8. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
9. Contamination is avoided for the bottle body.

Technique Parameter

Details:

Application:

ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. which was originally set up as an factory in 1999,the company is growing up time by time in research and design, quality and production, sales and after sale service. Our machineries are sold to more than 50 countries in the world and over cross domestic.

We specialize in producing beverage filling-packing equipments and water treatment equipments. The quality already pass drinkable standard.At present we produce: production lines for mineral water, pure water, fruit juice,tea drink,milk drink and carbonated drink with capacity  1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 60-1200 barrels per hour and water treatment plants 1-30 ton/hour; We provide separate machinery or turnkey project.

Our products pass quality inspection executed by Bureau of Quality and Technical Supervision every year. We pass Italy CE inspection in 2011;

We have full-time development and design engineer team, we absorb technologies from Germany, Japan, France, Italy, Switzerland, combined with China's national conditions to develop high starting point and advanced technology filling equipments, degree of automation to achieve the advanced level.

We own 3700 square meters modern factory in accordance with ISO9001: 2000 certification system standards with all kinds of advanced processing equipment and testing equipment, experienced technicians, scientific and strict management, all constitute FILLPACK excellence in product manufacturing system, which provides the strongest protection for FILLPACK product quality.

We believe in FILLPACK’ s future while you choose us!
