    500ml 800BPH Pet Bottle Blow Moulding Machine Semi Auto With Muffler

    Ask Lasest Price
    Brand Name : FillPack
    Model Number : 1200A
    Certification : CE / ISO9001
    Price : 6000-6580 USD/set
    Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram
    Supply Ability : 10 Sets Per Months
    Delivery Time : 25 Working Days After Deposit
    • Product Details
    • Company Profile

    500ml 800BPH Pet Bottle Blow Moulding Machine Semi Auto With Muffler

    Descriptions:

    1.1 Semi-automatic blow molding machine


    FP-1200A semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.

    ● Use touch screen to control the machine, convenient, efficient and durable.
    ● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
    ● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
    ● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
    ● The machine can be operated in the step-by-step mode and the semi-auto mode.
    ● The machine is small with low investment, easy and safe to operate.


    Main parameter:
    ModelFP-1200A
      ContainerProduct materialPET,PP,PE
    Volume0.1-2
    Theoretical output800-1000
    Preform length15-350
    Preform inner diameterΦ5-38
      MouldingMax.mould plate Dimension(L x W)350×380
    Max.mould thickness180
    Clamping force45
    Mould opening stroke16
      Machine size and weightMain machine (L x W x H)160×60×161cm
    Main machine weight500
    Heater (L x W x H)187×63×145cm
    Heater weight250
    Power17.5

    Details

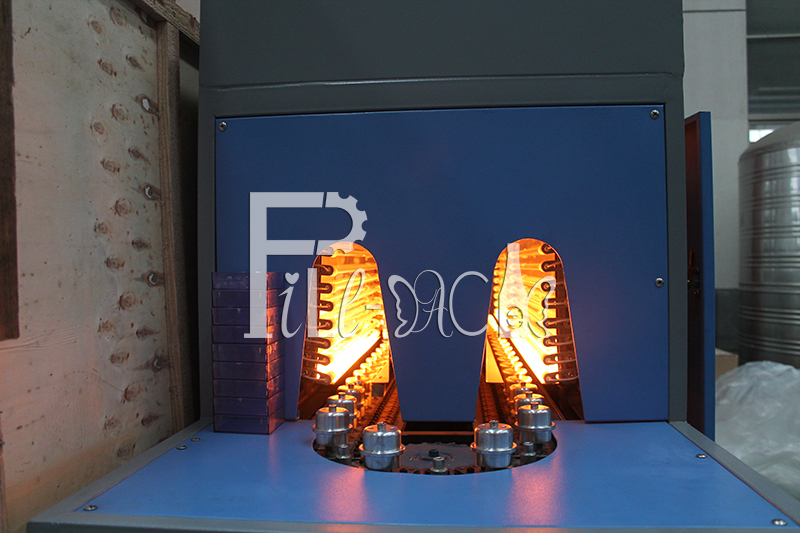

    Heater temperature controllerPreform heating
    Air source system of bottle blowing machineBottle blowing system

    1.2 HP air compressor


    Air compressorUnit1.2M3/30KG
    VolumeM31.2
    PressureKg30
    Speedr/min800
    PowerKW15
    Overall Dimensionmm1880×850×1050
    Weightkg580

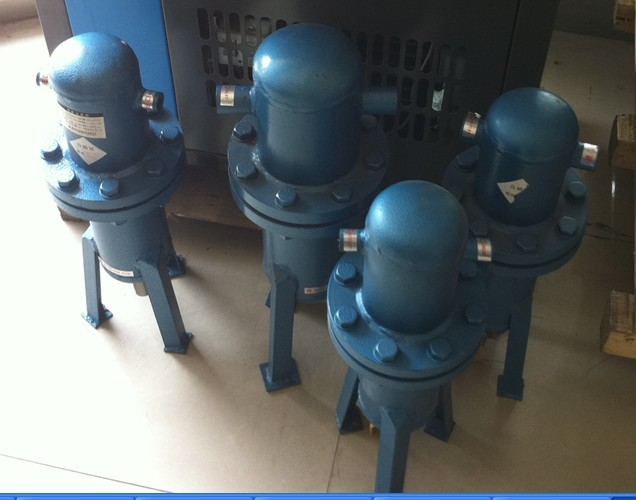

    1.3 Air Filter:


    Refining-FilterUnit1.2M3/30Kg
    Flow CapacityNM3/Min2
    Max. work pressureMpa3.0
    Inlet Temp.≤50
    Overall Dimensionmm750*350*350
    Weightkg20

    Options:


    We suggest buyer can purchase Air dryer and Mould Chiller to work together with our blow molding machine.

    Buyer can choose to buy it from us or locally.
