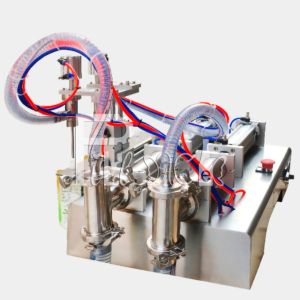

    High Viscosity Spout Pouch Pneumatic Benchtop Piston Filler

    Ask Lasest Price
    Brand Name : FILL PACK
    Model Number : QDG-2
    Price : USD315-820 /unit
    Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram
    Supply Ability : 50 sets/month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    High Viscosity Spout Pouch Pneumatic Benchtop Piston Filler

    Juice Spout Pouch Stand Up Pouch Filling Machine pneumatic Piston Filling Machine

    This stand-up pouch filling machine is suitable for filling liquid soy milk, milk, yogurt, fruit juice, plum juice, beverages, oral liquid, mineral water, soy milk, milk tea and other non-particle, low viscosity liquids. If the liquid with particles such as the material must be filtered clean before filling, this machine is equipped with a filter screen with filtering function. It is not suitable for filling particularly viscous materials.

    Main parameters:
    Power supply
    220V/50Hz
    Power
    380W-
    Number of filling heads
    2/4 heads
    Capacity
    500-5000ML/head
    Filling accuracy
    about ±1%
    Filling mode
    submerged filling
    Filling method
    quantitative filling
    Corrosion resistance
    yes
    Production speed
    0-20 bags/min
    Feed pipe length
    2 meters
    High temperature resistance
    yes
    Size
    Customized according to bag size
    Weight
    42KG
    Material
    Body-SUS304

    Main Features of Semi automatic small self suction pump type fluid stand up pouch filling machine :

    1. It has a wide range of applications, and it is more easy to be operated. 2. Intelligent filling, precise quantification, high filling accuracy, automatic counting, power-off memory. 3.This machine adopts the combination of electric self-suction and air control, cylinder lifting plug-in filling, anti-foaming, high precision. 4.The body is made of stainless steel, the products are hygienic, the machine is bright and clean, high-end luxury 5.The parts in contact with materials are made of food-grade silicon plastic pipes, which are hygienic and high temperature resistant. 6.Optional hand-held capping machine can be used together with high production efficiency. 7.This machine has reasonable structure, advanced performance, novelty and practicality, and can be customized according to customer needs. 8.This machine is an electric combination, and the customer needs to equip an air compressor (air pump) before it can be used.

    Application

    This semi-automatic table top filling machine is suitable for stand-up bags
    Detailed images
    Quality High Viscosity Spout Pouch Pneumatic Benchtop Piston Filler for sale
