    Semi Auto Mineral Water Stretch Bottle Blow Production / Producing Machine / Equipment / Line / Plant / System

    Ask Lasest Price
    Brand Name : FillPack
    Model Number : FP-500
    Certification : CE. ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram
    Supply Ability : 1 set / month
    Delivery Time : 35-40 days after deposit receipt
    • Product Details
    • Company Profile

    Semi Auto Mineral Water Stretch Bottle Blow Production / Producing Machine / Equipment / Line / Plant / System

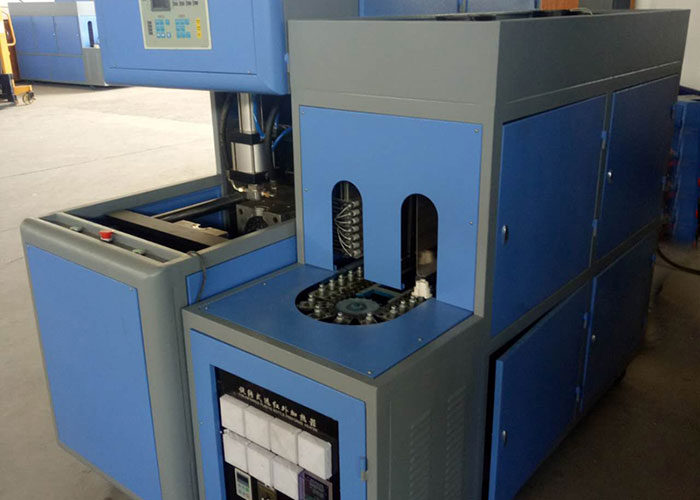

    Semi-auto 1 cavity blow molding machine 400-500BPH 0-5L PET bottle

    >>> Product Introduction:
    FP-500 Bottle producing machine is especially used to produce 5L bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.

    >>> Product Features:

    ● Perfect function with economic investment.
    ● Small size and compact construction with no space waste.
    ● Easy to operate and maintain, operation by one person.
    ● Saving power and uneasy to worn out, Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
    ● We can provide performs and various bottle & cap molds for 5 gallon and 3 gallon bottles to meet

    customer’s requirements.

    >>>Flow and Auxiliary machines:
    HP Air Compressor → Air Tank → Air Filter →Air Dryer → Air Filter → Chiller → LP Air Compressor →Automatic Bottle Blowing Machine
    1. PET Bottle Mold Our PET blowing machine can produce various shape bottles. we can according to your need to design your own bottle and make mold for you.
    2. Preform & Cap Molds We also can provide you with preform mold and cap mold according to your demand.

    >>>Technical Paramters:

      Container
    Product material
    PET
    Volume
    0-5L
    output
    400-500PCS/H
    Preform length
    15mm-320mm
    Preform inner diameter
    φ5mm-200mm
      Moulding
    Max.mould plate Dimenstion
    (L x W)
    520x350mm
    Max.mould thickness
    180mm
    Clamping force
    480KN
    Mould opening stroke
    420mm
      Machine size and weight
    Main machine (L x W x H)
    1850*610*1700mm
    Main machine weight
    800Kg
    Heater (L x W x H)
    1800*610*1400mm
    Heater weight
    300Kg
    Power
    40kw
